Link test repositories to dashboard
Modify Playwright github actions in the test repositories to notify and update dashboard to the latest test results:
Create a personal access token named
PAT_TOKENwithrepoandworkflowpermissions- If the organization your dashboard is located in requires SSO enable SSO for the PAT token

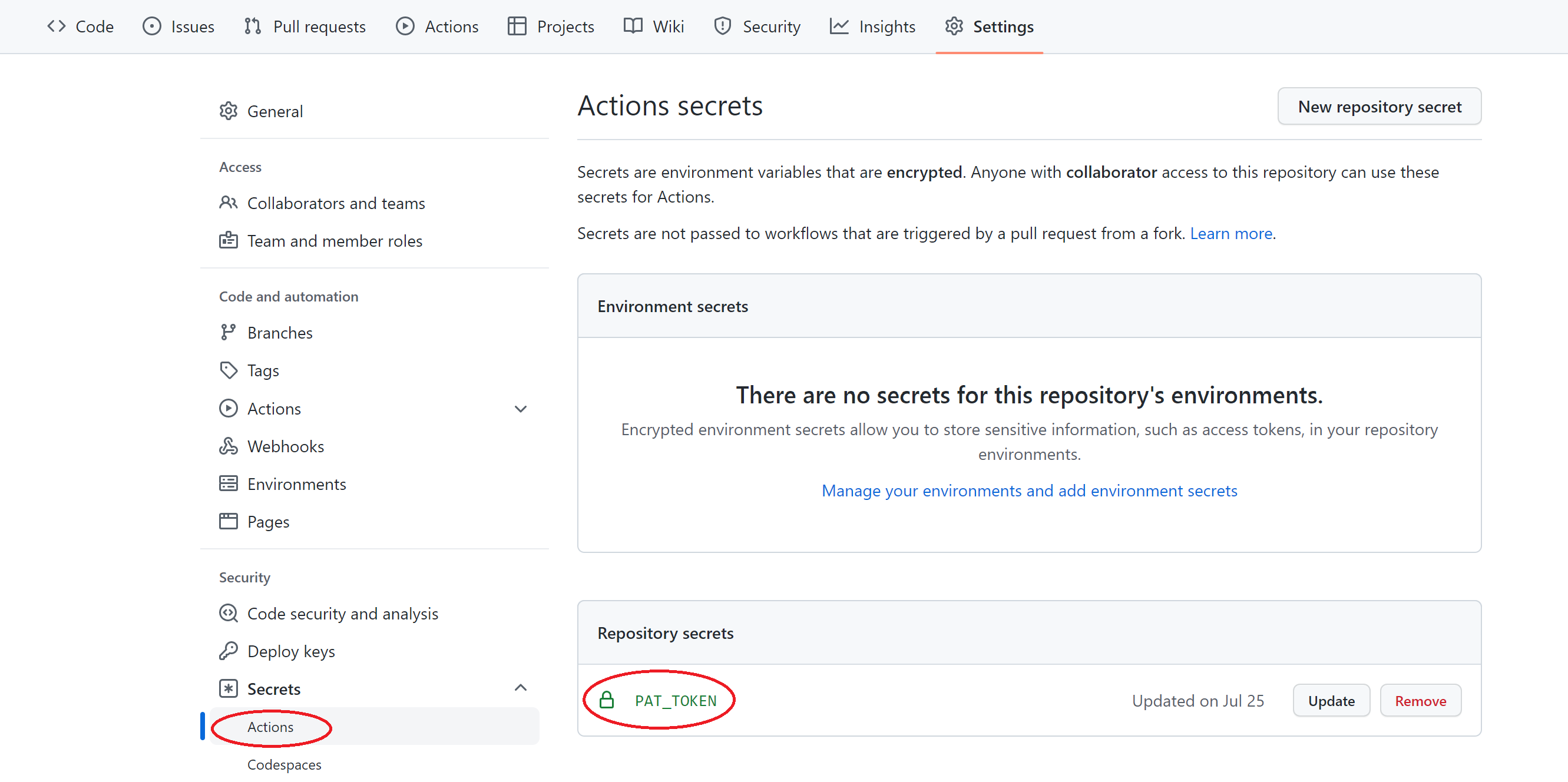

In the GitHub settings of the test repository, add the personal access token
PAT_TOKENto the test repository's actions secrets
Append the following steps to the
playwright-onDemand.ymlfile below the current steps in thetestjob.- name: Get current date
id: date
run: echo "::set-output name=date::$(date +'%Y-%m-%d')"
- name: Upload HTML report as Artifact
uses: actions/upload-artifact@v2
if: always()
with:
name: onDemand
path: pw-report/
storeReports:
name: Store reports
if: ${{ always() }}
needs: test
runs-on: ubuntu-latest
steps:
- name: Download all workflow run artifacts
uses: actions/download-artifact@v3
id: download
- name: Publish to external repo
if: always()
uses: peaceiris/actions-gh-pages@v3.7.3
with:
external_repository: mspnp/intern-js-pipeline
publish_branch: gh-pages
personal_token: ${{ secrets.PAT_TOKEN }}
publish_dir: ${{steps.download.outputs.download-path}}
destination_dir: test-reports/${{ github.repository }}
keep_files: true
user_name: "github-actions[bot]"
user_email: "github-actions[bot]@users.noreply.github.com"
notify-dashboard:
name: Notify Dashboard
if: ${{ always() }}
needs: [test, storeReports]
# The type of runner that the job will run on
runs-on: ubuntu-latest
# Steps represent a sequence of tasks that will be executed as part of the job
steps:
# Checks-out your repository under $GITHUB_WORKSPACE, so your job can access it
- uses: actions/checkout@v3
# Runs a single command using the runners shell
- name: Notify docusaurus repo
env:
GITHUB_TOKEN: ${{ secrets.PAT_TOKEN }}
run: |
gh api repos/mspnp/intern-js-pipeline/dispatches \
--raw-field event_type=rebuild-siteAs a result the
playwright-onDemand.ymlfile should look similar to the following code with extra lines to install additional dependencies if required.# This workflow will do a clean installation of node dependencies, cache/restore them, build the source code and run tests across different versions of node
# For more information see: https://help.github.com/actions/language-and-framework-guides/using-nodejs-with-github-actions
name: Playwright tests
on:
# Runs on push or pull requests and nightly
push:
branches: [ "main" ]
pull_request:
branches: [ "main" ]
schedule:
# nightly
- cron: '0 0 * * *'
jobs:
test:
runs-on: ubuntu-latest
strategy:
matrix:
node-version: [14.x, 16.x, 18.x]
# See supported Node.js release schedule at https://nodejs.org/en/about/releases/
steps:
- uses: actions/checkout@v3
- uses: actions/setup-node@v3
- name: Install dependencies
run: npm ci
- name: Install Playwright
run: npx playwright install --with-deps
- name: Build production build
run: npm run build
- name: Run your tests
run: npm run test
- name: Get current date
id: date
run: echo "::set-output name=date::$(date +'%Y-%m-%d')"
- name: Upload HTML report as Artifact
uses: actions/upload-artifact@v2
env:
TAG_NAME: test-report-${{ steps.date.outputs.date }}
if: always()
with:
name: onDemand
path: pw-report/
storeReports:
name: Store reports
if: ${{ always() }}
needs: test
runs-on: ubuntu-latest
steps:
- name: Download all workflow run artifacts
uses: actions/download-artifact@v3
id: download
- name: Publish to external repo
if: always()
uses: peaceiris/actions-gh-pages@v3.7.3
with:
external_repository: mspnp/intern-js-pipeline
publish_branch: gh-pages
personal_token: ${{ secrets.PAT_TOKEN }}
publish_dir: ${{steps.download.outputs.download-path}}
destination_dir: test-reports/${{ github.repository }}
keep_files: true
user_name: "github-actions[bot]"
user_email: "github-actions[bot]@users.noreply.github.com"
notify-dashboard:
name: Notify Dashboard
if: ${{ always() }}
needs: [test, storeReports]
# The type of runner that the job will run on
runs-on: ubuntu-latest
# Steps represent a sequence of tasks that will be executed as part of the job
steps:
# Checks-out your repository under $GITHUB_WORKSPACE, so your job can access it
- uses: actions/checkout@v3
# Runs a single command using the runners shell
- name: Notify docusaurus repo
env:
GITHUB_TOKEN: ${{ secrets.PAT_TOKEN }}
run: |
gh api repos/mspnp/intern-js-pipeline/dispatches \
--raw-field event_type=rebuild-siteThis allows the
testjob to store the Playwright artifact.storeReportsthen pushes the Playwright artifact to a folder in the dashboard'sgh_pages. Lastly,notify-dashboardsends a trigger to the dashboard notifying it to rebuild.Change the value of
external_repositoryunder thestoreReportsjob frommspnp/intern-js-pipelineto the dashboard's organization and repository nameIn the
notify-dashboardjob, replacemspnp/intern-js-pipelineinrepos/mspnp/intern-js-pipeline/dispatcheswith the dashboard's organization and repository nameTriggering the playwright Github action should now cause the dashboard's rebuild workflow to execute
